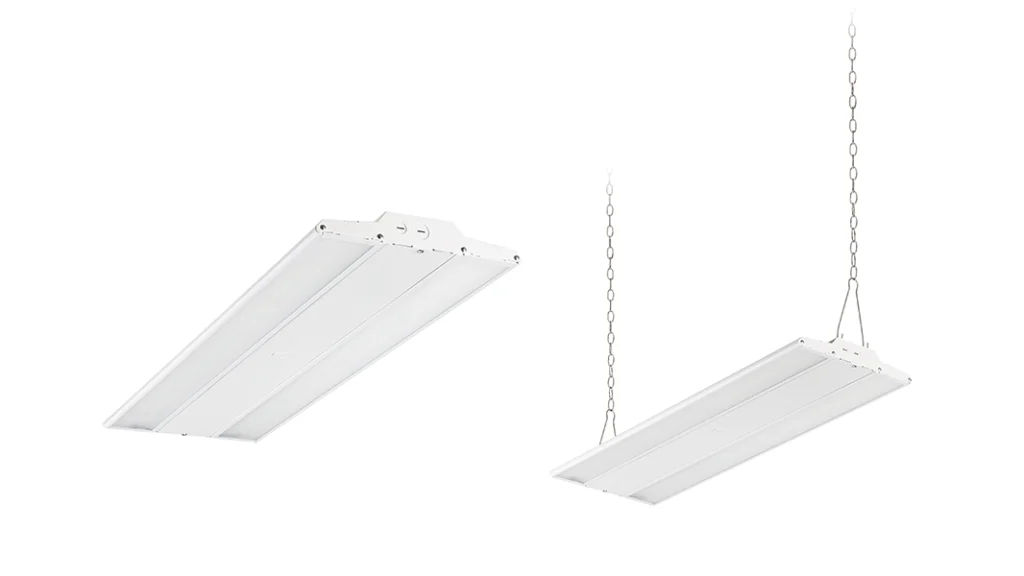

LINEAR HIGH BAY (LH301)

LH301 is the perfect lighting fixture for high ceiling application such as warehouses, factories, etc.
LH301 offers higher lumen output, efficacy, longer life compared to the conventional MH fixture and Fluorescent lamp fixtures.

General

  • Wattage : 80W~360W
  • Input Voltage : 120~277 VAC
  • Dimming : 0~10V dimming
  • CCT Option : 4000K, 5000K
  • CRI: > 80, THD: <10%, PF: >0.95
  • Surge Protection ; 6kV
  • Lens Option : Clear, Frosted
  • Operating temp. -22ºF to 122ºF
  • Mounting : Chain Hanger, Pendant EMB Optional (90 min.)
WattageLumen OutputSize(inch)
80W12800lm35.02(L)x11.8(W) x1.77(H)
100W16000lm
120W19200lm
160W25600lm
190W30400lm
240W38400lm48.83(L)x11.8(W)x1.77(H)
320W51200lm
360W61400lm

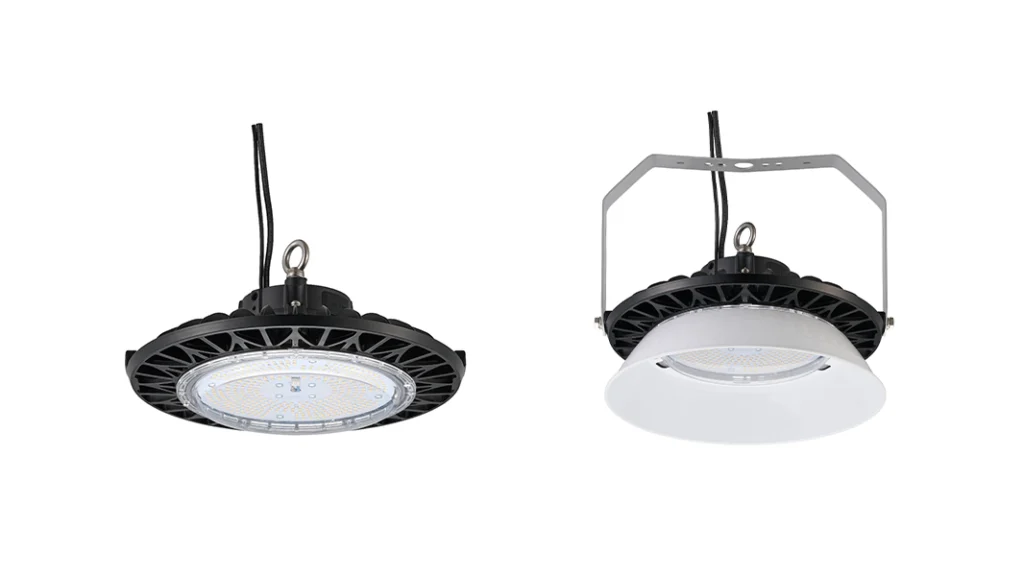

ROUND HIGH BAY (RH302)

RH302 LED Round High Bay Light is the most cost-effective high bay light in its class. With an IP65 rating, this compact and lightweight luminaire is suitable for prolonged use in a multitude of wet and dusty environments

General

  • Wattage : 70W~200W
  • Input Voltage : 120~277 VAC
  • Dimming : 0~10V dimming
  • CCT Option : 4000K, 5000K
  • CRI: > 80, THD: <10%, PF: >0.90
  • Surge Protection ; 6kV
  • Lens Option : Clear Operating temp. -22ºF to 122ºF
  • Mounting : Chain, Bracket EMB Optional (90 min.)
WattageLumen OutputSize(inch)
70W11690lm12.68(L)x12.59(W)x6.66(H)
95W15675lm
120W19320lm
140W22680lm
160W26280lm
180W28440lm
200W31600lm
360W61400lm

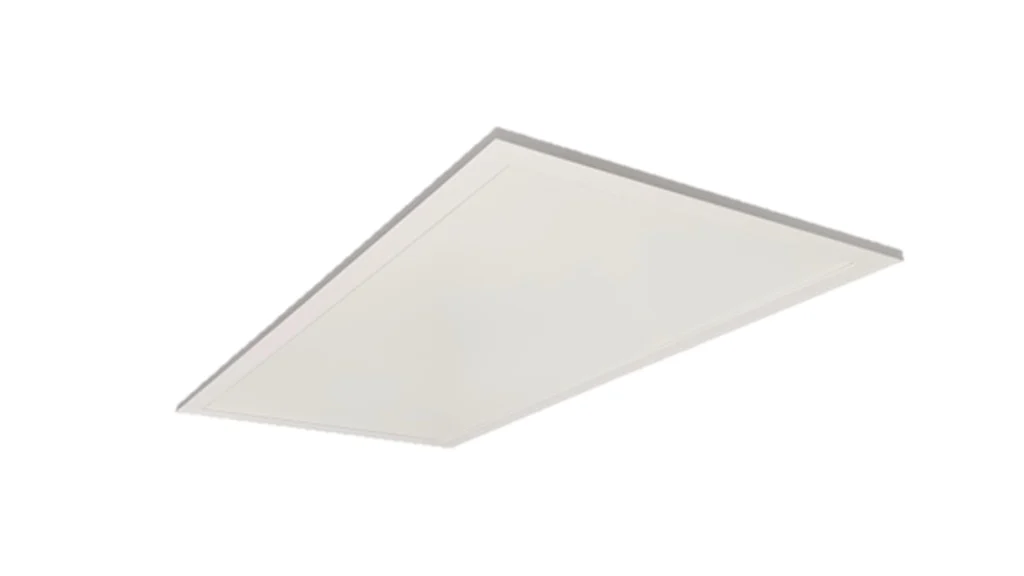

PANEL LIGHT (PL601)

PL601 CCT & Wattage Selectable Panel Light is and ultra slim profile, economical LED luminaire with excellent lumen efficacy. Powered by a UL class II LED driver and diffused through a premium-grade PMMA light guiding plate, all housed in an aluminum frame. PL601 delivers uniform, pleasant, and flicker-free lighting

General

  • Wattage : 70W~200W
  • Input Voltage : 120~277 VAC Dimming : 0~10V dimming
  • CCT : 3500K, 4000K, 5000K
  • CRI: > 80, THD: <10%
  • PF: >0.90 Operating temp. -4ºF to 122ºF
  • Mounting : Ceiling, Recessed
    EMB Optional (90 min.)
Size(ft)WattageLumen OutputRemarks
1 x 430W3900lmWattage, CCT
Selectable
40W5200lm
50W6500lm
2 x 225W3250lm
30W3900lm
40W5200lm
2 x 440W5200lm
50W6500lm
60W7800lm
80W10800lm5000K only

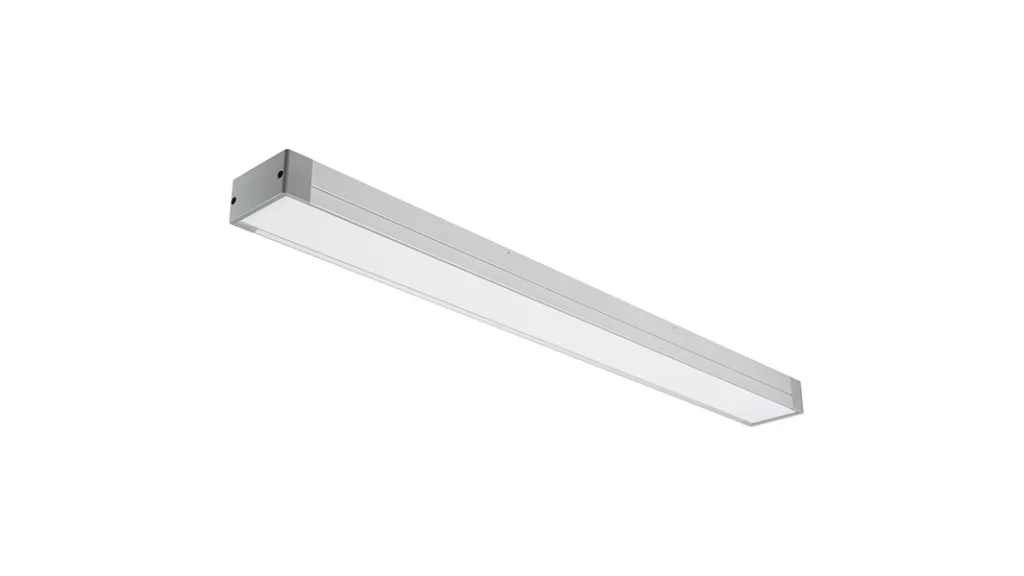

LINEAR STRIP (LS301)

LS301 Linear Strip light features economy and energy efficient performance. This luminaire utilizes a low brightness extruded PC lens for dependable performance and good looks. LS301 if perfect lighting fixture for various application such as warehouse, utility areas and production line etc.The fixture is a commercial ceiling fixture that provides high uniformity, excellent efficiency and reduces glare.

General

  • Wattage : 40W~46W
  • Input Voltage : 120~277 VAC
  • Dimming : 0~10V dimming
  • CCT Option : 5000K
  • CRI(option): 80/90, THD: <10%, PF: >0.9
  • Lens : Polycarbonate
  • Operating temp. -4ºF to 122ºF
  • Mounting : Chain, Pendant, Surface
WattageLumen OutputSize(inch)
40W5200lm47.24(L)x4.72(W)x3.14(H)
46W5980lm

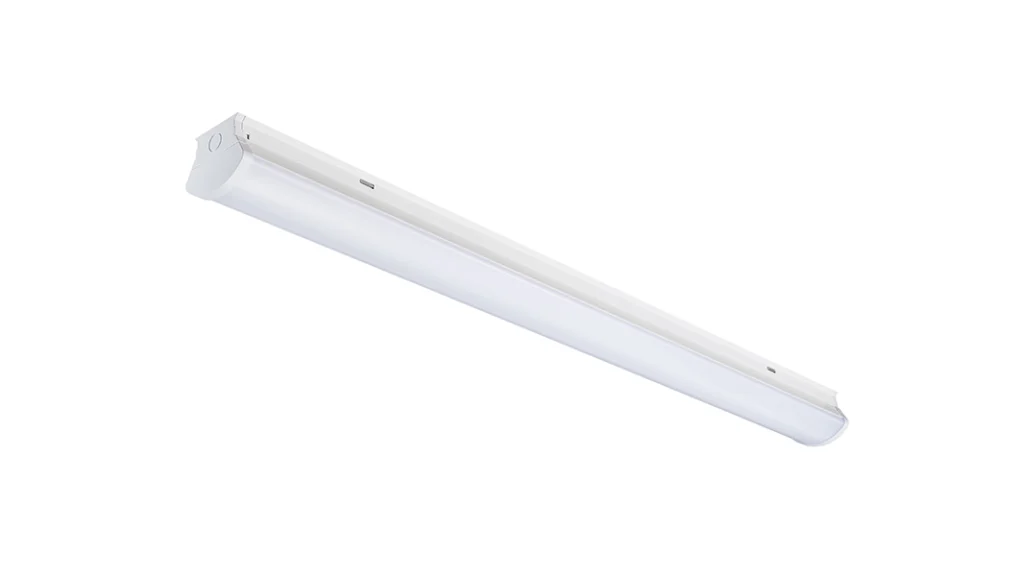

LINEAR STRIP (LS302)

LS302 Linear Strip light features economy and energy efficient performance. This luminaire utilizes a low brightness extruded PC lens for dependable performance and good looks. This cost effective LED utility wrap fixture is a commercial ceiling fixture that provides high uniformit, excellent efficiency and reduces glare.

General

  • Wattage : 40W~46W
  • Input Voltage : 120~277 VAC
  • Dimming : 0~10V dimming
    CCT Option : 4000K, 5000K
  • CRI:  > 80, THD: <10%, PF: >0.9
  • Lens : Polycarbonate
  • Operating temp. -22ºF to 122ºF
  • Mounting : Surface, Pendant EMB Optional (90 min.)
WattageLumen OutputSize(inch)
40W5000lm48.03(L)x4.0(W)x3.87(H)
46W5750lm
